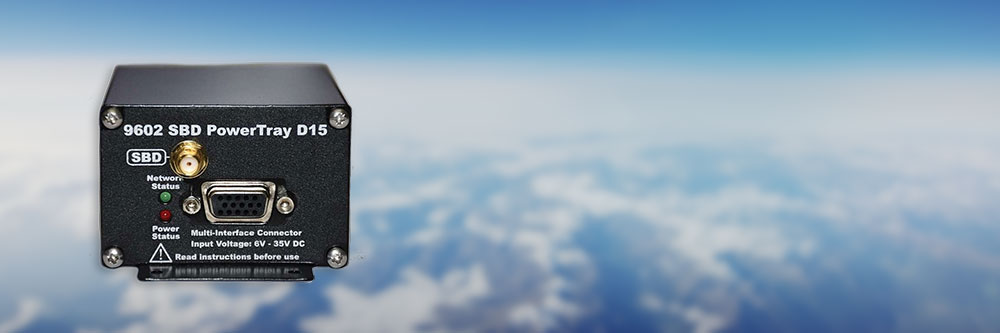

9602 SBD Powertray D15
The 9602 SBD PowerTray D15 is designed to carry the Iridium 9602 SBD satellite transceiver. The board contains everything needed, including onboard voltage regulators, RS232 level shifting and protection circuitry, to easily connect the 9602 transceiver to an RS232 DTE port.
The 9602's antenna connector is conveniently converted to an SMA female connector. Onboard LEDs allow the power status and network availability to be observed at a glance. SBD ON/OFF control is provided via pin 6 to control power to the unit.
Leave Open Circuit for ON (internally pulled to 3.3V) and pull to Ground to turn OFF. The input voltage range is 6 to 35VDC, making it suitable for both aircraft and vehicle systems.
Applications
Aviation, Construction, Emergency, Forestry, Tracking, Government, Maritime, Mining, Oil & Gas, Utilities.
Hardware
Powertray D15 Key Features
- RS232 + Power in one D15 interface
- SMA-F RF connector
- Built-in over-current protection and level conversion
- Compact design: 64 x 75 x 16mm (W x L x H)
- Status LEDs
