9602 SBD Powertray D9

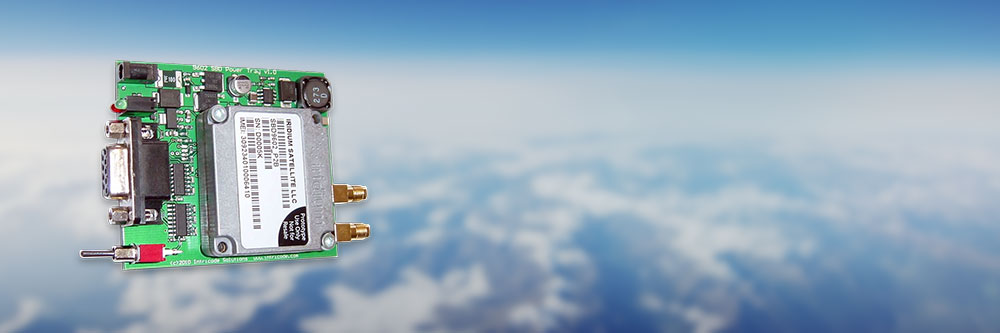

The 9602 SBD PowerTray is designed to carry the Iridium 9602 SBD satellite transceiver. The board contains everything needed, including on-board voltage regulators, RS232 level shifting and protection circuitry, to easily connect the 9602 transceiver to an RS232 DTE port using a standard RS232 cable.

In addition, the 9602's RF connectors are conveniently converted to SMA female connectors.

Onboard LEDs allow the power status and network availability to be observed at a glance. A toggle switch is provided to control power to the unit. The input voltage can range from 6 to 35VDC, making it suitable for both aircraft and vehicle systems.

Applications

Aviation, Construction, Emergency, Forestry, Tracking, Government, Maritime, Mining, Oil & Gas, Utilities.

Hardware

Powertray D9 Key Features

  • Standard RS232 interface connects directly to a PC
  • RF connectors converted to SMA-Type1
  • Built-in over-current protection & level conversion
  • Compact design: 64 x 75 x 16mm (W x L x H)
  • Toggle enable/disable 9602 transceiver
  • Status LEDs
